How to Build an Outdoor Sink in 2026- DIY Outdoor Sink

Byadminosk

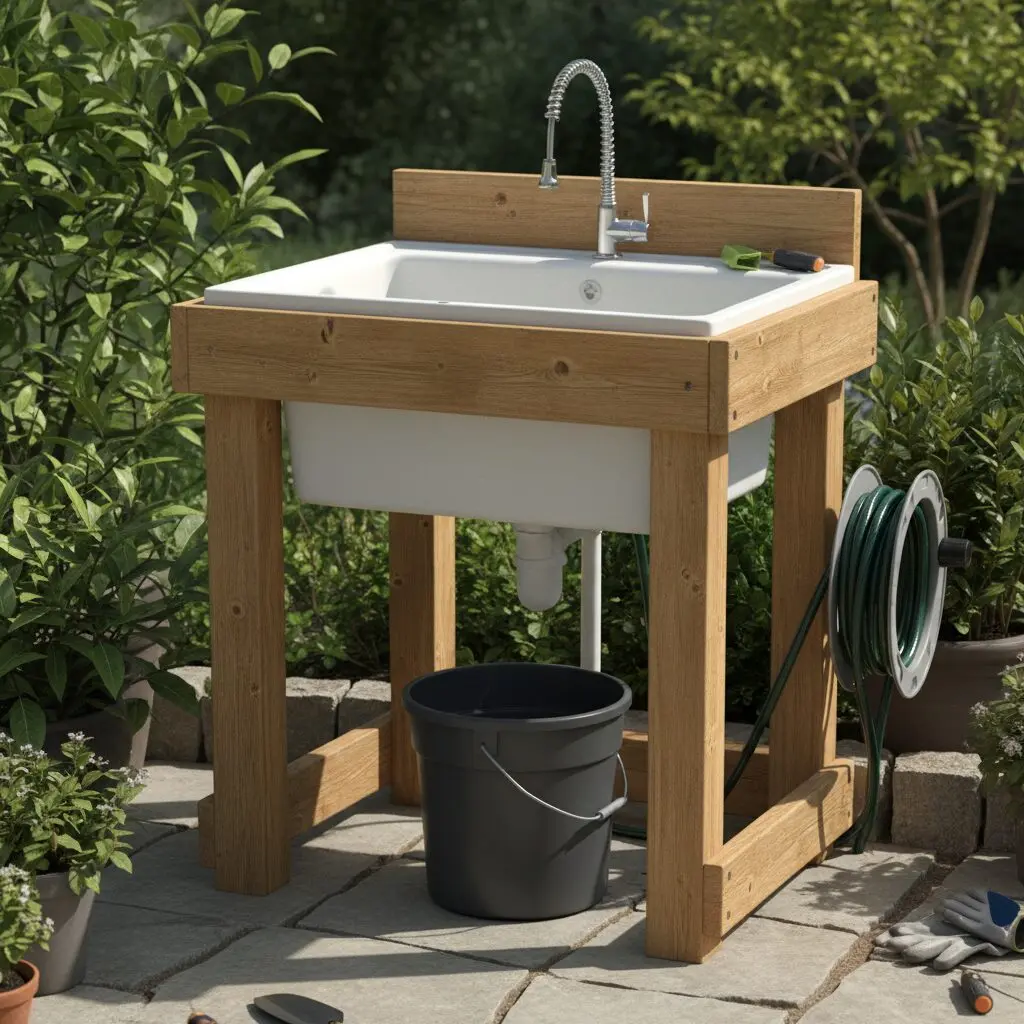

Low budget DIY outdoor sink station made from 2×4 lumber with utility sink, hose connection, and bucket drain



If you want a place to rinse veggies, wash paint brushes, or clean grill tools without messing up your indoor kitchen? A DIY outdoor sink is a smart, low-cost upgrade. This expert guide shows you how to plan, build, and maintain a homemade DIY outdoor sink—from a quick hose-fed setup to a more permanent outdoor sink station with hot/cold water and a proper drain.

You’ll get DIY outdoor sink ideas, a low budget DIY outdoor kitchen sink plan, and pro tips to avoid leaks, clogs, and code issues. Let’s get a DIY outdoor sink.



What You’ll Build + Quick Snapshot

  • You’ll build a DIY outdoor sink station that’s durable, weather-aware, and easy to maintain.
  • Time:
  • Budget (typical US pricing):
    • Low budget DIY outdoor kitchen sink: $60–$200
    • Mid-range station: $200–$500
    • Permanent hot/cold + code-compliant drain: $500–$1,500+
  • Skill: Beginner to intermediate.
  • Safety: Check local plumbing rules and call 811 before digging (for dry wells or drain lines).

Plan the Location and Check Rules

  • Pick a spot near:
  • Site factors:
    • Slope for drainage (avoid low areas that puddle).
    • Shade vs. sun (UV can age plastics; shade reduces algae).
    • Splash zone (don’t face wood siding without a backsplash).
    • Wind (avoid spraying back toward doors/windows).
  • Rules and codes:
    • Backflow protection is required for hose bibbs/faucets to protect drinking water.
    • Graywater drainage may be regulated; avoid dumping greasy or chemical-laden water into soil.
    • Hard-plumbed water lines and drains may require permits and inspections.

Pro tip: If you plan any trenching for drains, call 811 to locate utilities. It’s free and can prevent dangerous strikes.

Water Supply Options

Easiest: Garden Hose Feed (Cold-Only)

  • Parts:
    •    Hose-to-faucet adapter with vacuum breaker/anti-siphon device.
    •    Quick-connect fittings
    •   Basic cold-water faucet (or a hose bib mounted to your station).
  • Pros:
    •   Fast, cheap, flexible.
  • Cons:
    •   Cold-only; must disconnect and drain for winter in freezing climates.
  • Tips:
    •    Use an anti-siphon vacuum breaker at the hose connection to prevent backflow.
    •    Add quick-connects so you can snap the sink on/off the spigot in seconds.

Upgraded: Hot/Cold via PEX Branch

  • Run insulated PEX lines from indoor plumbing to the outdoor sink.
  • Add shutoff valves and freeze-proof sill cocks where possible.
  • Seal wall penetrations with sleeves and exterior plates; insulate exposed runs.
  • Consider professional help for through-wall penetrations and code compliance.

Backflow & Pressure Basics

  • Always install a vacuum breaker/backflow preventer at or near the water source.
  • If you get banging pipes (water hammer), add arrestors or lower pressure at the spigot with a regulator.

Drainage Options

Temporary: Bucket Catch

  • Sink strainer → tailpiece → P-trap → hose/tube into a sealed bucket.
  • Pros: No digging or permits; empty the bucket into a proper drain.
  • Cons: Must be emptied often; still use a trap to control odors.
  • Add a mesh cup or strainer to catch food bits and prevent smells.

Semi-Permanent: Dry Well/Gravel Pit (Graywater)

  • Dig a gravel pit (depth/size depends on soil; many use 1.5–3 ft deep and 2–3 ft wide for light use).
  • Keep at least 10 ft from foundations and away from edible garden beds.
  • Only use plant-safe soaps; no fats, oils, or chemicals.
  • Note: Local rules vary—check first.

Permanent: Hard Drain Tie-In

  • Connect to your home’s drain/vent system.
  • Maintain 1/4″ per foot slope on horizontal drain runs.
  • Include a P-trap and proper venting (or code-approved air admittance valve, where allowed).
  • Likely requires a permit—when in doubt, hire a licensed plumber.

Materials and Tools

Low-Budget DIY Outdoor Kitchen Sink ($60–$200)

  • Sink: plastic utility sink or small stainless bar sink.
  • Frame: 2×4 lumber or pallet wood (weather-sealed).
  • Faucet: basic cold tap or hose bib.
  • Water: hose adapter + vacuum breaker + quick-connects.
  • Drain: basket strainer, tailpiece, P-trap kit, flexible hose to bucket or dry well.
  • Hardware: exterior screws, construction adhesive/silicone.
  • Finish: exterior sealant for wood.

Mid-Range/Upgraded

  • Sink: stainless drop-in with deeper basin.
  • Faucet: pull-out sprayer.
  • Counter: exterior-grade plywood with laminate or composite deck boards.
  • Casters for portability; backsplash panel (e.g., metal sheet or PVC).
  • GFCI-protected outlet (if adding pump, heater, or lighting).

Tools

  • Measuring tape, square, pencil.
  • Circular saw or miter saw.
  • Drill/driver + hole saw (for faucet/sink).
  • Adjustable wrench/pipe wrench.
  • Safety gear: eye/ear protection, gloves.
  • Exterior wood sealant/brush.

DIY Outdoor Sink Ideas & Layouts

  • Freestanding DIY outdoor sink station (2×4 frame): Counter space + lower shelf + hooks
  • Upcycle: Old cabinet base + drop-in sink; or a laundry tub on a simple frame
  • Rolling cart sink (portable): Locking casters, side rails, removable bucket drain
  • Wall-mounted fold-down shelf sink: Space saver for patios/balconies
  • Pallet/crate “homemade diy outdoor sink”: Rustic look; sand edges and seal thoroughly

These diy outdoor sink ideas can be mixed and matched—start basic and upgrade as you go

Step-by-Step Build: Low-Budget Sink Station

1) Build the Frame

  • Cut list (example for a 20″×16″ bar sink, 36″ counter height).
    • Legs: four at 34.5″ (add top thickness to reach ~36″).
    • Top frame rails: two at ~40″ and two at ~22″ (adjust to your sink + overhang).
    • Lower shelf rails: four at same widths, set ~8–10″ from the bottom.
  • Assemble rectangular top frame; add cross braces where sink will sit
  • Attach legs; add lower shelf rails and decking slats
  • Level the frame and add diagonal corner braces for stiffness

2) Cut the Counter and Drop in the Sink

  • Use exterior plywood or deck boards for the top.
  • Trace the sink cutout; cut with a jigsaw.
  • Apply silicone around the rim; drop the sink in and clamp per manufacturer directions.

3) Install the Faucet and Connect Water

  • Drill the faucet hole (check the stem size).
  • Mount the faucet; add plumber’s tape to threaded parts.
  • At the supply:
    • Screw a vacuum breaker onto the spigot.
    • Add quick-connect fittings to your hose and faucet adapter.
  • Snap the hose to the faucet; check for leaks.

4) Plumb the Drain

  • Install the basket strainer in the sink with plumber’s putty.
  • Add tailpiece → P-trap → hose to bucket or dry well.
  • Zip-tie a stainless mesh screen inside the strainer to catch solids.
  • For odor control, ensure water always remains in the trap.

5) Accessorize and Weatherproof

  • Add a backsplash (sheet metal, PVC panel) to protect siding.
  • Mount hooks for towels and tools.
  • Seal all wood faces and end grain with an exterior sealant.
  • Optional: add casters for mobility (lockable).

6) Test

  • Run water and check every connection for leaks.
  • Verify drainage flow; if using a dry well, run a few gallons and watch for pooling.

Upgrade Path: Permanent Hot/Cold + Hard Drain

  • Water lines (PEX):
  • Drain connection:
    • Use a code-compliant P-trap and vent (or AAV where allowed)
    • Maintain 1/4″ per foot slope to the tie-in
    • Add a cleanout for maintenance
  • Protection:
    • Frost-proof sillcocks, pipe insulation, UV-resistant conduit for lines
    • Rodent-proof any openings with steel wool + sealant

If you’re unsure about venting, slopes, or tie-in points, consult a licensed plumber.

Weatherproofing, Winterizing, and Care

  • Winterize (freezing climates)
    • Disconnect the hose; drain the faucet and lines.
    • Open valves to let trapped water out; cover faucet/sink.
  • Maintenance:
    • Clean the strainer weekly; empty bucket after each use if applicable.
    • Disinfect the basin monthly (mild bleach solution or vinegar—rinse thoroughly).
    • Reseal wood annually; tighten screws/brackets each season.
  • Rust & mold prevention:
    • Choose stainless fasteners; keep airflow under the sink.
    • Wipe down after heavy use to reduce staining and mildew.

FAQs

Yes—start with a hose-fed cold-water setup and a bucket drain. It’s beginner-friendly and avoids permits in most areas.

Rules vary. Many places allow limited graywater use outdoors if you avoid harsh chemicals and grease. Always check local codes before building a dry well.

Use a plastic utility sink or small bar sink, a simple 2×4 frame, a hose-fed faucet with a vacuum breaker, and a bucket drain.

It’s wise to include one to control odors and keep bugs out. Keep some water in the trap after each use.

Standard counter height is about 36″ (91 cm). Adjust for your height and sink depth.

Portable propane or electric on-demand heaters exist, but prioritize safety: use GFCI outlets, follow manufacturer clearances, and local rules.

Disconnect and drain hoses, open valves to let water out, insulate exposed lines, and cover the faucet. For permanent setups, install drain-down valves.

Use biodegradable, plant-safe soaps. Avoid bleach, solvents, and greasy residues.
